[IN STOCK] NEW L-1 Stereo Mixers

Post by L-1 »

I made new stereo mixers to mix my system properly.

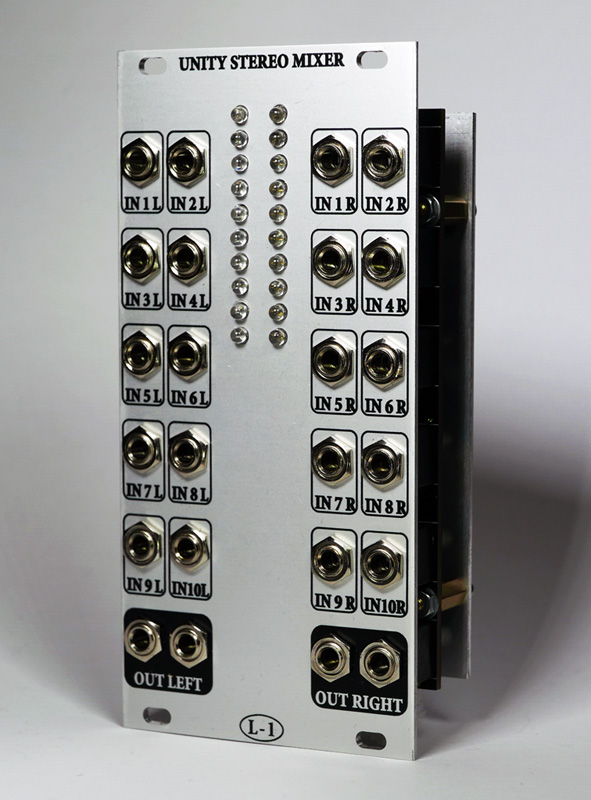

Several stereo mixers can be mixed into Unity Stereo Mixer as pictured:




L-1 Two Channel Stereo Mixer http://l-1.su/2chStereoMixer.html

L-1 Unity Stereo Mixer http://l-1.su/UnityStereoMixer.html




Last edited by L-1 on Mon Dec 12, 2016 5:49 pm, edited 1 time in total.
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

Two 2 Channel Stereo Mixers can be controlled from the Mute expander via splitted cable:


Dogma
Super Deluxe Wiggler
Posts: 4387
Joined: Wed Aug 28, 2013 10:46 pm

Post by Dogma »

8-)

Please tell me the unity stereo mixer can be used with my original stereo mixer?
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

Dogma wrote:8-)

Please tell me the unity stereo mixer can be used with my original stereo mixer?
Yes, it is connected at the first photo.
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

Kits:

Dogma
Super Deluxe Wiggler
Posts: 4387
Joined: Wed Aug 28, 2013 10:46 pm

Post by Dogma »

Just to be 100% my Current http://l-1.su/StereoMixer.html
Can be augmented by the unity stereo mixer?
Looks fabulous
Dogma
Super Deluxe Wiggler
Posts: 4387
Joined: Wed Aug 28, 2013 10:46 pm

Post by Dogma »

To answer my own question and to sav Alexi answering twice the photo provided shows yes it is
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

Yes!
ywwg
Learning to Wiggle
Posts: 26
Joined: Tue Nov 05, 2013 1:47 pm

Post by ywwg »

This looks super useful! I have a lot of stereo sources and mixing them down is a pain.

For the unity mixer, are the Left inputs normalled to the Right inputs for occasional mono sources?
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

ywwg wrote:This looks super useful! I have a lot of stereo sources and mixing them down is a pain.

For the unity mixer, are the Left inputs normalled to the Right inputs for occasional mono sources?
No. The Unity mixer is planned as mixing node and required input modules like this Two Channel Stereo Mixer, it has normalled inputs for mono sources.
User avatar
mopoco
Common Wiggler
Posts: 127
Joined: Sat Apr 18, 2015 4:47 am

Post by mopoco »

bit off topic but:
- what kind of clips do you use in the first picture to bundle your leads?
- are the cables custom made?
i recognised the rean plugs which i also use for my custom cables
(with sommer cable onyx 2025)
- how did you do that colour coding? i'd like to adapt that solution.

i'll probably will have more questions concerning the actual topic,
but not before i thoroughly researched all the information that
you have given so far...

till then, let me say this: i am a really happy user of the vc stereo mixer
and i am glad to see the things on the new one that i had to solve
externally, i.e. cv-attenuation and aux send...

once again, great desgin!
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

- Thse clips left from tuners.


- yes, the cables made by L-1. I cutted some audio cables with RCA plugs to have this nice thin grey cable. Color coding is made with shrink tubes.

- also separate left and right inputs.
User avatar
jesselucas
Common Wiggler
Posts: 188
Joined: Thu Oct 01, 2015 8:58 pm
Contact:

Post by jesselucas »

What would be the best way to use the 2 Channel Stereo Mixer as a stereo send/return effects? I have two stereo signals that I'd like to mix together and control the send per stereo channel.

Also, is there way to achieve PFL like functionality with the Phones module?
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

Yes, it's possible - stereo send/return.

You can feed your stereo signal into Phones module from any point of your patch. There are multiples for using a signal further.
User avatar
n0rd
Veteran Wiggler
Posts: 545
Joined: Thu Aug 02, 2012 6:01 am
Location: Down Under

Post by n0rd »

Where can one get the A50K Dual gang pots for the 2 Channel Stereo Mixer? (Part number P1, P2 - SEND1, SEND2).
Smallbear, Tayda, Thonk, etc don't have them.

Steve
:tardis:
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

n0rd wrote:Where can one get the A50K Dual gang pots for the 2 Channel Stereo Mixer? (Part number P1, P2 - SEND1, SEND2).
Smallbear, Tayda, Thonk, etc don't have them.

Steve

You late. Thonk had them. I hope they will make new stock.

When you will be ready to order kit, write me, I will try to find a couple for you.

(EDIT) Thonk has dual 50K linear. They will fit ok.
User avatar
dugoutcanoe
Common Wiggler
Posts: 166
Joined: Sat May 07, 2016 3:14 pm
Location: Wissahickon Creek
Contact:

Post by dugoutcanoe »

I PM'd L-1
but i'll ask here as well:
Does the pcb come with all SMD parts already on the board? It seems to be the case from the pics in the OP.
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

dugoutcanoe wrote:I PM'd L-1
but i'll ask here as well:
Does the pcb come with all SMD parts already on the board? It seems to be the case from the pics in the OP.

Yes, SMD parts are already on the board.






User avatar
dugoutcanoe
Common Wiggler
Posts: 166
Joined: Sat May 07, 2016 3:14 pm
Location: Wissahickon Creek
Contact:

Post by dugoutcanoe »

Got another question about the Stereo Unity Mixer for you, L-1.

Are the two outputs on ether side summed? Why the double output? Sorry if it was explained elsewhere. I must've missed it :/
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

Two outputs are just multiples.
I planed for example one out for speakers , another for recording.
User avatar
fragletrollet
Veteran Wiggler
Posts: 662
Joined: Wed Dec 21, 2011 5:55 am
Location: Norge
Contact:

Post by fragletrollet »

How's the panning work on the stereo mixers? I mean, you pan mono sources into a stereo bus. I'm confused :hmm:

Also would be great with a 4hp version of your unity mixer (don't need the leds)
User avatar
L-1
Super Deluxe Wiggler
Posts: 2220
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 »

Level meter is needed to control sum level because easy to overload with many summed channels.

How panning works - at the picture yellow one channel, green another. Panorama is modulated by triangle LFO. It has -4.5dB at the center according to the panning law.



User avatar
fragletrollet
Veteran Wiggler
Posts: 662
Joined: Wed Dec 21, 2011 5:55 am
Location: Norge
Contact:

Post by fragletrollet »

Okay, but how does panning work on stereo signals? You pan two mono signals left and right, so why is there a pan control on each of the stereo channels?
User avatar
fragletrollet
Veteran Wiggler
Posts: 662
Joined: Wed Dec 21, 2011 5:55 am
Location: Norge
Contact:

Post by fragletrollet »

still don`t get this.
yaongi~
Learning to Wiggle
Posts: 29
Joined: Thu Feb 07, 2019 7:15 pm

Post by yaongi~ »

Pan is an attenuator for each channel. So if you pan hard right there is no left signal in the output, and the right output is amplified relative to central pan.
